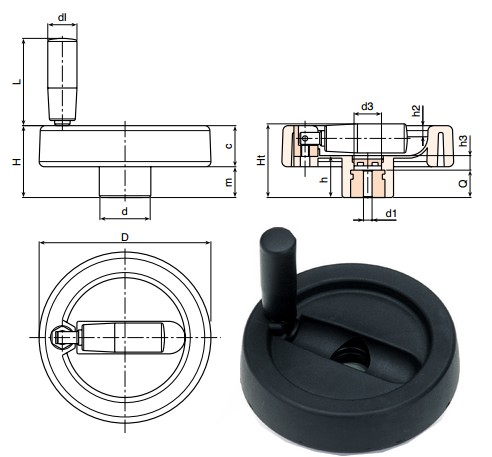

Solid control handwheel with central foldaway revolving handle
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Handwheel and Handle colour: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Main insert: Zinc plated steel
| Narudžbenica broj | D | H | Ht | h | d | m | c | h2 | h3 | d3 | d1H7 | Q | dm | dl | L | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C199-80 D05 | 80 | 33 | 35 | 19 | 25 | 15 | 18 | 4 | 6 | 15 | 5 H9 | 13 | 12 | 16 | 38 | 113 | 109 HRK |
| C199-80 D10 | 80 | 33 | 35 | 19 | 25 | 15 | 18 | 4 | 6 | 15 | 10 | 13 | 12 | 16 | 38 | 110 | 109 HRK |
| C199-100 D05 | 100 | 42 | 43,5 | 24 | 30 | 18 | 24 | 6,5 | 8 | 17 | 5 H9 | 16 | 16 | 17 | 48 | 240 | 121 HRK |
| C199-100 D10 | 100 | 42 | 43,5 | 24 | 30 | 18 | 24 | 6,5 | 8 | 17 | 10 | 16 | 16 | 17 | 48 | 237 | 121 HRK |
