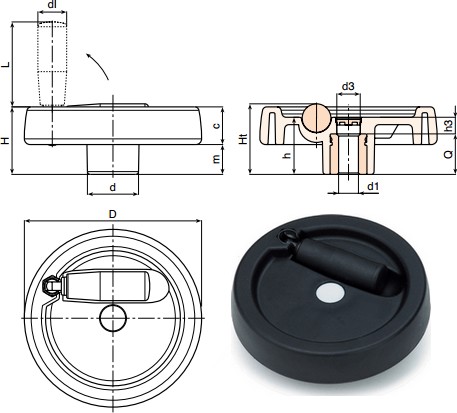

Solid control handwheel with foldaway revolving handle
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Handwheel and Handle colour: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Main insert: Zinc plated steel
| Narudžbenica broj | D | H | Ht | h | d | m | c | h3 | d3 | d1H7 | Q | dm | dl | L | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C199-125 D05 | 124 | 48 | 49,5 | 40 | 36 | 21,5 | 26,5 | 16 | 15 | 5 H9 | 24 | 18 | 20 | 38 | 349 | 145 HRK |
| C199-125 D12 | 124 | 48 | 49,5 | 40 | 36 | 21,5 | 26,5 | 16 | 15 | 12 | 24 | 18 | 20 | 38 | 343 | 145 HRK |
| C199-150 D05 | 149 | 53 | - | 44 | 38 | 24,5 | 28,5 | 12 | 26 | 5 H9 | 32 | 22 | 20 | 58 | 500 | 169 HRK |
| C199-150 D14 | 149 | 53 | - | 44 | 38 | 24,5 | 28,5 | 12 | 26 | 14 | 32 | 22 | 20 | 58 | 492 | 169 HRK |
| C199-175 D05 | 174 | 58 | - | 48 | 40 | 24,5 | 33,5 | 16 | 26 | 5 H9 | 32 | 28 | 26 | 80 | 715 | 194 HRK |
| C199-175 D16 | 174 | 58 | - | 48 | 40 | 24,5 | 33,5 | 16 | 26 | 16 | 32 | 28 | 26 | 80 | 705 | 194 HRK |
| C199-200 D05 | 198 | 63 | - | 53 | 44 | 24,5 | 38,5 | 17 | 26 | 5 H9 | 36 | 28 | 27 | 90 | 1015 | 218 HRK |
| C199-200 D20 | 198 | 63 | - | 53 | 44 | 24,5 | 38,5 | 17 | 26 | 20 | 36 | 28 | 27 | 90 | 1000 | 218 HRK |
| C199-250 D05 | 250 | 67 | - | 58 | 60 | 29 | 38 | 22 | 36 | 5 H9 | 36 | 28 | 27 | 90 | 1500 | 302 HRK |
| C199-250 D20 | 250 | 67 | - | 58 | 60 | 29 | 38 | 22 | 36 | 20 | 36 | 28 | 27 | 90 | 1485 | 302 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
