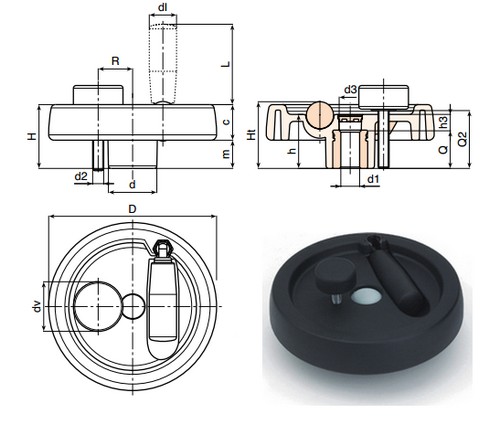

Solid control handwheel with foldaway revolving handle and locking handwheel
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Handwheel and Handle colour: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Main insert: Zinc plated steel
| Narudžbenica broj | D | H | Ht | h | d | m | c | h3 | d3 | R | d2 | Q2 | d1H7 | Q | dm | dl | L | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C990-125 D05 | 124 | 48 | 49,5 | 40 | 36 | 21,5 | 26,5 | 16 | 15 | 22-25 | M6 | A.R. | 5 H9 | 24 | 18 | 20 | 38 | 410 | 157 HRK |
| C990-125 D12 | 124 | 48 | 49,5 | 40 | 36 | 21,5 | 26,5 | 16 | 15 | 22-25 | M6 | A.R. | 12 | 24 | 18 | 20 | 38 | 408 | 157 HRK |
| C990-150 D05 | 149 | 53 | - | 44 | 38 | 24,5 | 28,5 | 12 | 26 | 25-28 | M8 | A.R. | 5 H9 | 32 | 22 | 20 | 58 | 560 | 182 HRK |
| C990-150 D14 | 149 | 53 | - | 44 | 38 | 24,5 | 28,5 | 12 | 26 | 25-28 | M8 | A.R. | 14 | 32 | 22 | 20 | 58 | 592 | 182 HRK |
| C990-175 D05 | 174 | 58 | - | 48 | 40 | 24,5 | 33,5 | 16 | 26 | 26-36 | M8 | A.R. | 5 H9 | 32 | 28 | 26 | 80 | 775 | 206 HRK |
| C990-175 D16 | 174 | 58 | - | 48 | 40 | 24,5 | 33,5 | 16 | 26 | 26-36 | M8 | A.R. | 16 | 32 | 28 | 26 | 80 | 765 | 206 HRK |
| C990-200 D05 | 198 | 63 | - | 53 | 44 | 24,5 | 33,5 | 16 | 26 | 28-42 | M8 | A.R. | 5 H9 | 36 | 28 | 26 | 90 | 1075 | 230 HRK |
| C990-200 D20 | 198 | 63 | - | 53 | 44 | 24,5 | 33,5 | 16 | 26 | 28-42 | M8 | A.R. | 20 | 36 | 28 | 26 | 90 | 1065 | 230 HRK |
| C990-250 D20 | 250 | 67 | - | 58 | 60 | 29 | 38 | 22 | 36 | 36-50 | M8 | A.R. | 5 H9 | 36 | 28 | 27 | 90 | 1560 | 314 HRK |
| C990-250 D20 | 250 | 67 | - | 58 | 60 | 29 | 38 | 22 | 36 | 36-50 | M8 | A.R. | 20 | 36 | 28 | 27 | 90 | 1545 | 314 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
