EUROMODEL four arm control handwheel
This product is not for sale! You can choose an alternative category plastic parts.
Material: Special high resistance glass fiber reinforced technopolymer. Oils and greases resistant.
Surface: Satin
Color: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Alternative cap color:
Orange (RAL 2004 cod. 02)
Blue (RAL 5015 cod. 07)
Yellow(RAL 1021 cod. 10)
Red (RAL 3000 cod .16)
Green (RAL 6024 cod.17)
Black (RAL 9011 cod. 01)
Main insert: Zinc plated steel

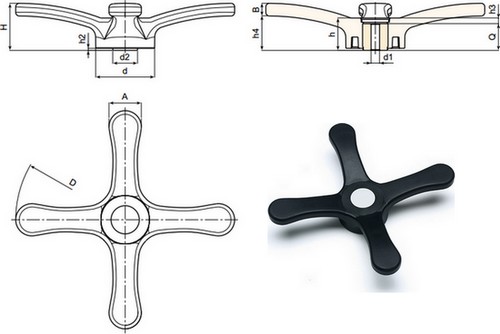

| Narudžbenica broj | D | H | h | d | d2 | A | B | h2 | h3 | h4 | d3 | d1H7 | Q | dm | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D454-310 TD05 | 308 | 66 | 45,5 | 83 | 35,5 | 45,5 | 20 | 3 | 7,5 | 46 | 34 | 5 H9 | 38 | 26 | 900 | 165 HRK |
| D454-310 TD18 | 308 | 66 | 45,5 | 83 | 35,5 | 45,5 | 20 | 3 | 7,5 | 46 | 34 | 18 | 38 | 26 | 890 | 165 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
