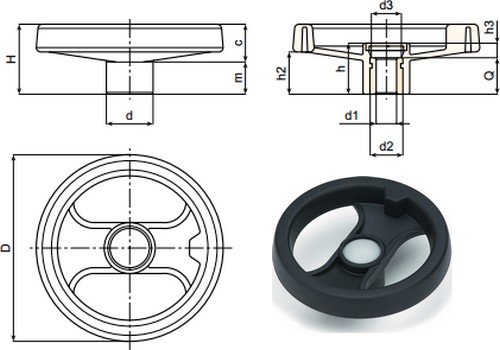

Two spoke control handwheel
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Handwheel and Handle colour: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Alternative cap color:
Orange (RAL 2004 cod. 02)
Blue (RAL 5015 cod. 07)
Yellow(RAL 1021 cod. 10)
Red (RAL 3000 cod .16)
Green (RAL 6024 cod.17)
Black (RAL 9011 cod. 01)
Main insert: Zinc plated steel
| Narudžbenica broj | D | H | h | d | m | c | h2 | h3 | d3 | d1H7 | Q | dm | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D205-80 D05 | 80 | 34 | 26 | 24,5 | 16 | 18 | 20 | 6 | 16 | 5 H9 | 20 | 12 | 94 | 29 HRK |
| D205-80 D10 | 80 | 34 | 26 | 24,5 | 16 | 18 | 20 | 6 | 16 | 10 | 20 | 12 | 92 | 29 HRK |
| D205-100 D05 | 99 | 43 | 33 | 28 | 20 | 23 | 26,5 | 9 | 16 | 5 H9 | 24 | 16 | 152 | 34 HRK |
| D205-100 D10 | 99 | 43 | 33 | 28 | 20 | 23 | 26,5 | 9 | 16 | 10 | 24 | 16 | 150 | 34 HRK |
| D205-130 D05 | 129 | 50 | 36 | 32 | 21 | 29 | 32 | 12 | 26 | 5 H9 | 24 | 18 | 240 | 43 HRK |
| D205-130 D12 | 129 | 50 | 36 | 32 | 21 | 29 | 32 | 12 | 26 | 12 | 24 | 18 | 237 | 43 HRK |
| D205-160 D05 | 159 | 57 | 40,5 | 40 | 22 | 35 | 34 | 8,5 | 26 | 5 H9 | 32 | 22 | 390 | 61 HRK |
| D205-160 D14 | 159 | 57 | 40,5 | 40 | 22 | 35 | 34 | 8,5 | 26 | 14 | 32 | 22 | 385 | 61 HRK |
| D205-200 D05 | 198 | 61,5 | 39,5 | 51 | 17,5 | 44 | 33 | 7,5 | 26 | 5 H9 | 32 | 22 | 630 | 78 HRK |
| D205-200 D16 | 198 | 61,5 | 39,5 | 51 | 17,5 | 44 | 33 | 7,5 | 26 | 16 | 32 | 22 | 624 | 78 HRK |
| D205-250 D05 | 252 | 70 | 47 | 55,5 | 24 | 46 | 39 | 11 | 24 | 5 H9 | 36 | 28 | 920 | 103 HRK |
| D205-250 D20 | 252 | 70 | 47 | 55,5 | 24 | 46 | 39 | 11 | 24 | 20 | 36 | 28 | 910 | 103 HRK |
| D205-350 D05 | 346 | 80 | 49,5 | 67,5 | 24 | 56 | 43,5 | 17,5 | 35 | 5 H9 | 32 | 30 | 1530 | 363 HRK |
| D205-350 D20 | 346 | 80 | 49,5 | 67,5 | 24 | 56 | 43,5 | 17,5 | 35 | 20 | 32 | 30 | 1520 | 363 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
