Two-spoke control handwheel with revolving handle and lock
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Color: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Alternative cap color:
Orange (RAL 2004 cod. 02)
Blue (RAL 5015 cod. 07)
Yellow(RAL 1021 cod. 10)
Red (RAL 3000 cod .16)
Green (RAL 6024 cod.17)
Black (RAL 9011 cod. 01)

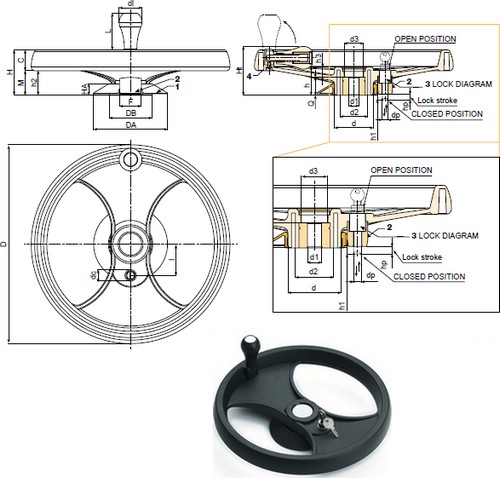

d1 - on request
| Narudžbenica broj | D | H | Ht | h | d | M | C | h2 | h3 | d2 | d3 | Q | dm | dl | L | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D604-350 | 346 | 80 | 86 | 49,5 | 67,5 | 24 | 56 | 43,5 | 17,5 | 49 | 35 | 32 | 30 | 40 | 64 | 180 | 495 HRK< |
| Narudžbenica broj | I | dc | h1 | dp | hp | DA | HA | DB | F |
|---|---|---|---|---|---|---|---|---|---|
| D604-350 | 55 | 20 | 8 | 10 | 10 | 131 | 20 | 76 | 38 |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
