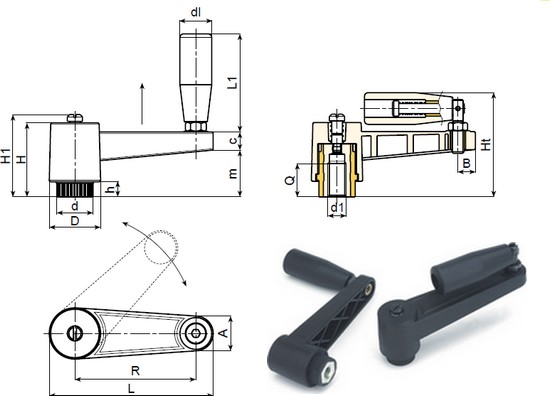

Indexed crank handle with threaded insert and revolving and folding handle
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Zinc plated steel
| Narudžbenica broj | L | R | H | D | d | m | c | A | B | h | H1 | Ht | d1 | Q | dl | L1 | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E519-65 M08 | 86 | 65 | 46 | 27 | 19 | 29 | 13 | 17 | 9 | 10 | - | 66,5 | M08 | 18 | 20 | 54 | 104 | 67 HRK |
| E519-65 M10 | 86 | 65 | 46 | 27 | 19 | 29 | 13 | 17 | 9 | 10 | - | 66,5 | M10 | 17 | 20 | 54 | 102 | 67 HRK |
| E519-65 M12 | 86 | 65 | 46 | 27 | 19 | 29 | 13 | 17 | 9 | 10 | - | 66,5 | M12 | 17 | 20 | 54 | 100 | 67 HRK |
| E519-80 M12 | 108 | 80 | 50 | 34 | 24,5 | 32 | 13 | 22 | 11,5 | 10,5 | 53 | 75 | M12 | 22 | 25 | 75 | 185 | 75 HRK |
| E519-80 M14 | 108 | 80 | 50 | 34 | 24,5 | 32 | 13 | 22 | 11,5 | 10,5 | 53 | 75 | M14 | 23 | 25 | 75 | 180 | 75 HRK |
| E519-80 M16 | 108 | 80 | 50 | 34 | 24,5 | 32 | 13 | 22 | 11,5 | 10,5 | 53 | 75 | M16 | 20 | 25 | 75 | 174 | 75 HRK |
| E519-110 M12 | 138 | 110 | 50 | 34 | 24,5 | 33 | 13 | 22 | 11,5 | 11 | 53 | 75 | M12 | 20 | 25 | 75 | 199 | 91 HRK |
| E519-110 M14 | 138 | 110 | 50 | 34 | 24,5 | 33 | 13 | 22 | 11,5 | 11 | 53 | 75 | M14 | 20 | 25 | 75 | 220 | 91 HRK |
| E519-110 M16 | 138 | 110 | 50 | 34 | 24,5 | 33 | 13 | 22 | 11,5 | 11 | 53 | 75 | M16 | 20 | 25 | 75 | 225 | 91 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
