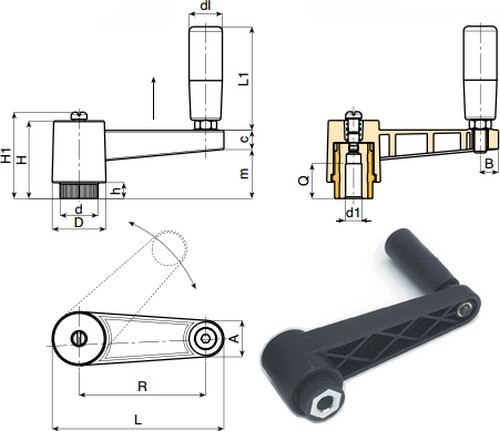

Crank handle with smooth insert and revolving handle
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Zinc plated steel
| Narudžbenica broj | L | R | H | D | d | m | c | A | B | h | h1 | d1h7 | Q | dl | L1 | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E520-65 D08 | 86 | 65 | 46 | 27 | 19 | 29 | 13 | 17 | 9 | 10 | - | D08 | 22 | 20 | 56 | 83 | 36 HRK |
| E520-80 D10 | 108 | 80 | 50 | 34 | 24,5 | 32 | 13 | 22 | 11,5 | 10,5 | 53 | D10 | 24 | 21,5 | 66 | 177 | 44 HRK |
| E520-80 D12 | 108 | 80 | 50 | 34 | 24,5 | 32 | 13 | 22 | 11,5 | 10,5 | 53 | D12 | 23 | 21,5 | 66 | 174 | 44 HRK |
| E520-110 D12 | 138 | 110 | 50 | 34 | 24,5 | 33 | 13 | 22 | 11,5 | 11 | 54 | D12 | 28 | 21,5 | 66 | 200 | 52 HRK |
| E520-110 D14 | 138 | 110 | 50 | 34 | 24,5 | 33 | 13 | 22 | 11,5 | 11 | 54 | D14 | 26 | 21,5 | 66 | 210 | 52 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
