6-lobe handwheel with threaded through female insert
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Stainless steel

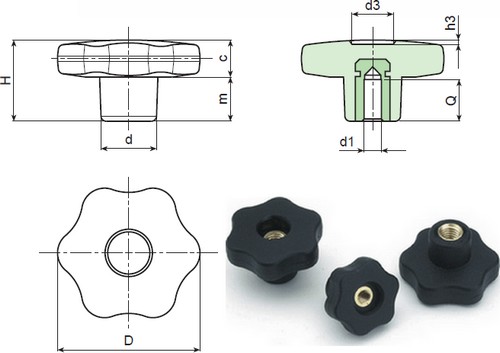

| Narudžbenica broj | D | H | d | c | m | d3 | h3 | Q | d1 | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F177-30 M05 | 30 | 22 | 15 | 11 | 11 | 11 | 4 | 18 | M5 | 12 | 4,7 HRK |
| F177-30 M06 | 30 | 22 | 15 | 11 | 11 | 11 | 4 | 18 | M6 | 13 | 4,7 HRK |
| F177-30 M08 | 30 | 22 | 15 | 11 | 11 | 11 | 4 | 18 | M8 | 13 | 4,7 HRK |
| F177-30 M10 | 30 | 22 | 15 | 11 | 11 | 11 | 4 | 18 | M10 | 14 | 4,7 HRK |
| F177-40 M06 | 40 | 24,5 | 17 | 12 | 12,5 | 12 | 6 | 18 | M6 | 20 | 6,1 HRK |
| F177-40 M08 | 40 | 24,5 | 17 | 12 | 12,5 | 12 | 6 | 18 | M8 | 21 | 6,1 HRK |
| F177-40 M10 | 40 | 24,5 | 17 | 12 | 12,5 | 12 | 6 | 18 | M10 | 22 | 6,1 HRK |
| F177-50 M06 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | 18 | M6 | 33 | 7,3 HRK |
| F177-50 M08 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | 18 | M8 | 34 | 7,3 HRK |
| F177-50 M10 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | 18 | M10 | 34 | 7,3 HRK |
| F177-50 M12 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | 18 | M12 | 35 | 7,3 HRK |
| F177-60 M08 | 60 | 34 | 24 | 16 | 18 | 15 | 16 | 18 | M8 | 54 | 9,1 HRK |
| F177-60 M10 | 60 | 34 | 24 | 16 | 18 | 15 | 16 | 18 | M10 | 55 | 9,1 HRK |
| F177-60 M12 | 60 | 34 | 24 | 16 | 18 | 15 | 16 | 18 | M12 | 55 | 9,1 HRK |
| F177-60 M14 | 60 | 34 | 24 | 16 | 18 | 15 | 16 | 18 | M14 | 56 | 9,1 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
