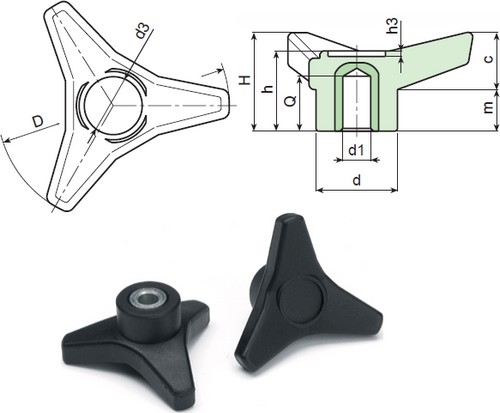

3- lobe handwheel with smooth hole
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Zinc plated steel
| Narudžbenica broj | D | H | h | d | c | m | d3 | h3 | dm | Q | d1(H7) | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F662-45 D06 | 45 | 21 | 18 | 16 | 11 | 10 | 11 | 1 | 06 | 8 | 06 | 14 | 5,1 HRK |
| F662-65 D05 | 65 | 28 | 23,5 | 22 | 16,5 | 11,5 | 15,5 | 1,5 | 10 | 13 | 5H9 | 36 | 7,4 HRK |
| F662-65 D10 | 65 | 28 | 23,5 | 22 | 16,5 | 11,5 | 15,5 | 1,5 | 10 | 12 | 10 | 34 | 7,4 HRK |
| F662-85 D05 | 85 | 37 | 30,5 | 30 | 21 | 16 | 21 | 2 | 16 | 19 | 5H9 | 72 | 9,3 HRK |
| F662-85 D10 | 85 | 37 | 30,5 | 30 | 21 | 16 | 21 | 2 | 16 | 18 | 10 | 67 | 9,3 HRK |
| F662-105 D05 | 105 | 46 | 37,5 | 35 | 26 | 19 | 25 | 2 | 18 | 25 | 5H9 | 100 | 12 HRK |
| F662-105 D12 | 105 | 46 | 37,5 | 35 | 26 | 19 | 25 | 2 | 18 | 24 | 12 | 92 | 12 HRK |
| F662-125 D05 | 125 | 54 | 44 | 42,5 | 31 | 23 | 28 | 2 | 22 | 27 | 5H9 | 193 | 23 HRK |
| F662-125 D14 | 125 | 54 | 44 | 42,5 | 31 | 23 | 28,5 | 2 | 22 | 27 | 14 | 181 | 23 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
