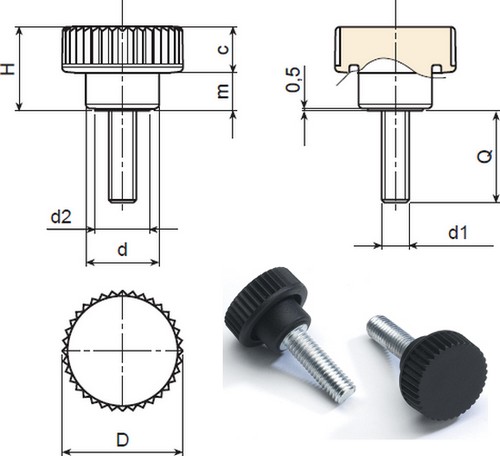

Solid knurled handwheel with threaded stud
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Zinc plated steel
| Narudžbenica broj | D | H | d | m | c | d2 | d1 | Q | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|
| H753-26 M05 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M05 | 16 | 9 | 4,4 HRK |
| H753-26 M05 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M05 | 20 | 9,5 | 4,4 HRK |
| H753-26 M05 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M05 | 25 | 10 | 4,6 HRK |
| H753-26 M06 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M06 | 16 | 9,5 | 4,4 HRK |
| H753-26 M06 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M06 | 20 | 10 | 4,4 HRK |
| H75326M06 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M06 | 25 | 10,5 | 4,7 HRK |
| H75326M06 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M06 | 30 | 11,5 | 4,7 HRK |
| H753-26 M08 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M08 | 20 | 9,5 | 4,4 HRK |
| H75326M08 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M08 | 30 | 12,5 | 4,8 HRK |
| H753-26 M08 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | M08 | 40 | 15 | 5,2 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
