Knuled hollowed handwheel with threaded blind insert
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Color: Black (RAL 9011)
Main insert: Brass

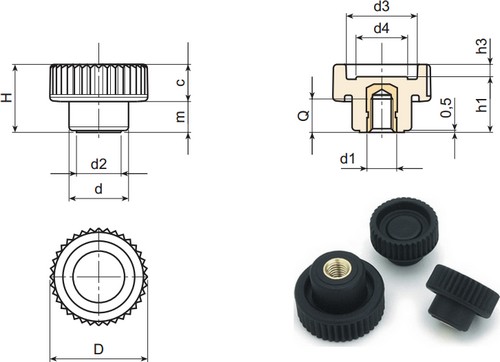

| Narudžbenica broj | D | H | d | m | c | d2 | d3 | d4 | h1 | h3 | d1 | Q | Weight (g) | Cijena za kom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H767-21 M05 | 21 | 15 | 13 | 6,5 | 8,5 | 9,5 | 15 | 10,5 | 12,5 | 2,5 | M5 | 7 | 5,5 | 3,3 HRK |
| H767-21 M06 | 21 | 15 | 13 | 6,5 | 8,5 | 9,5 | 15 | 10,5 | 12,5 | 2,5 | M6 | 7 | 6 | 3,3 HRK |
| H767-26 M06 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | 19 | 13 | 15 | 3 | M6 | 9 | 8 | 3,9 HRK |
| H767-26 M08 | 26 | 18 | 16 | 8,5 | 9,5 | 12 | 19 | 13 | 15 | 3 | M8 | 8 | 8,5 | 3,9 HRK |
| H767-33 M08 | 32 | 23 | 20 | 10,5 | 12,5 | 15 | 23 | 16 | 18 | 5 | M8 | 11 | 15,5 | 4,7 HRK |
| H767-33 M010 | 32 | 23 | 20 | 10,5 | 12,5 | 15 | 23 | 16 | 18 | 5 | M10 | 10 | 16 | 4,7 HRK |
| H767-40 M08 | 40 | 28 | 25 | 12,5 | 15,5 | 18 | 28 | 21 | 22 | 6 | M8 | 14 | 27 | 6,3 HRK |
| H767-33 M010 | 40 | 28 | 25 | 12,5 | 15,5 | 18 | 28 | 21 | 22 | 6 | M10 | 14 | 28 | 6,3 HRK |
| H767-40 M012 | 40 | 28 | 25 | 12,5 | 15,5 | 18 | 28 | 21 | 22 | 6 | M12 | 12 | 29 | 6,3 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
