Two-screw clamp for high temperature
Material:silicone
In case of fire: according to the DLN 4102: 1998
Building material class: B2
Using ranged between temperatures of -50 ° C to + 220 ° C
The hardness of the rubber pads : + _ 60 ° Shore A /

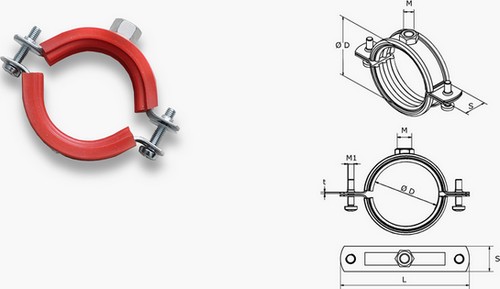

| Part Number | D(mm) | L(mm) | M | M1 | S x t | Komada u pakovanju | cijena/Ikom) |
|---|---|---|---|---|---|---|---|
| ODVOTW100012016 | 12-16 | 56 | M8 | M5x22 | 20x1,25 | 100 | 6,3 HRK |
| ODVOTW100017019 | 17-19 | 59 | M8 | M5x22 | 20x1,25 | 100 | 6,4 HRK |
| ODVOTW100020023 | 20-23 | 62 | M8 | M5x22 | 20x1,25 | 100 | 6,5 HRK |
| ODVOTW100025030 | 25-30 | 68 | M8 | M5x22 | 20x1,25 | 100 | 7,6 HRK |
| ODVOTW100031038 | 31-38 | 78 | M8 | M5x22 | 20x1,25 | 100 | 8,3 HRK |
| ODVOTW100040046 | 40-46 | 88 | M8 | M5x26 | 20x1,25 | 100 | 9,8 HRK |
| ODVOTW100048053 | 48-53 | 96 | M8 | M5x22 | 20x1,25 | 50 | 11 HRK |
| ODVOTW100054059 | 54-59 | 101 | M8/M10 | M5x22 | 20x1,25 | 50 | 12 HRK |
| ODVOTW100060064 | 60-64 | 111 | M8/M10 | M5x22 | 20x1,5 | 50 | 13 HRK |
| ODVOTW100067071 | 67-71 | 116 | M8/M10 | M5x22 | 20x1,5 | 50 | 14 HRK |
| ODVOTW100072078 | 72-78 | 127 | M8/M10 | M6x20 | 25x1,5 | 50 | 21 HRK |
| ODVOTW100081086 | 81-86 | 138 | M8/M10 | M6x20 | 25x1,5 | 50 | 22 HRK |
| ODVOTW100087092 | 87-92 | 145 | M8/M10 | M6x20 | 20x1,5 | 50 | 23 HRK |
| ODVOTW100095103 | 95-103 | 156 | M8/M10 | M6x30 | 20x1,5 | 50 | 26 HRK |
| ODVOTW100102116 | 102-116 | 170 | M8/M10 | M6x30 | 20x1,5 | 50 | 29 HRK |
| ODVOTW100121127 | 121-127 | 185 | M8/M10 | M8x30 | 20x1,5 | 25 | 34 HRK |
| ODVOTW100133141 | 133-141 | 201 | M8/M10 | M8x30 | 20x1,5 | 25 | 37 HRK |
| ODVOTW100159168 | 159-168 | 230 | M8/M10 | M8x35 | 20x1,5 | 25 | 42 HRK |
| ODVOTW100204210 | 204-210 | 283 | M8/M10 | M8x30 | 20x1,5 | 12 | 52 HRK |
Navedene cijene su bez PDV, a plaća se pouzećem. Ukoliko je naveden broj narudžbenice, molimo napišite iz odabranu vrstu robe. Troškovi dostave od 55 HRK.
